Ballistic Protection
Ballistic, blast and fire protection systems built on Soft Armour® ceramic granulate. For defence, critical infrastructure and energy.
Illustrative visuals from Soft Protect manufacturer materials.

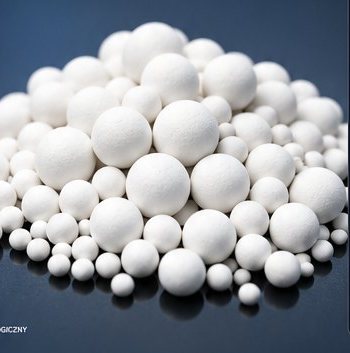

Soft Armour® granulate
Hard, spherical ceramic elements absorb and disperse the energy of projectiles and fragments. The fill stays effective even after repeated hits in the same spot.
Soft Armour® granulate is the basis of all Soft Protect systems. The spherical technical-ceramic elements, 13 mm in diameter, are non-combustible (class A1), do not corrode or absorb water, and are non-toxic and fully recyclable. Supplied in 20 l bags, it can also be topped up in the field – which is why it is used in panels, mobile modules, safe rooms, shutters and counters.
Technical data
| Material | Technical ceramic, white |
|---|---|
| Shape, diameter | Sphere, Ø 13 mm ± 1 mm |
| Bulk density | approx. 1.48 kg/l |
| Reaction to fire | Non-combustible, A1 (EN 13501-1) |
| Ballistics | STANAG 4569 Level 3 at 12 cm* |
| Durability | Does not corrode or absorb water |
| Environment | Non-toxic, fully recyclable |
| Packaging | 20 l bags (approx. 29.6 kg) |
Hybrid system Soft Armour® + MgO WIT
MgO WIT magnesium oxide boards form a non-combustible, water-resistant shell around the granulate fill. The wall protects against gunfire, blast and fire at the same time.
The system combines a 120 mm Soft Armour® fill with two 12 mm MgO WIT magnesium oxide boards, giving a wall approx. 144 mm thick. The boards form a non-combustible, water-resistant shell, and the optional intermediate layer can hold reinforcement or EMP shielding. It suits safe rooms, containers, command posts, server rooms and military sites. Values marked * depend on the configuration.
Technical data
| Outer board | MgO WIT, 12 mm |
|---|---|
| Intermediate layer | Reinforcement or EMP shielding (option) |
| Fill | Soft Armour®, 120 mm |
| Inner board | MgO WIT, 12 mm |
| Total thickness | approx. 144 mm |
| Fire resistance | up to REI 120* |
| Panel formats | e.g. 1200 × 600 mm and 1200 × 300 mm |
Applications: Safe rooms · Containers · Command posts · Server rooms · Military sites
Ballistic doors
Single and double-leaf doors for safe rooms, buildings and industrial sites. The protection level is chosen to suit the requirement.
Ballistic doors come as single- or double-leaf units in widths of 90, 100 or 120 cm. Interior versions reach class FB4, exterior versions up to FB6; overpressure-resistant doors and bunker and special doors (FL7 / FB6+ on request) are also available. Locking is by multi-point bolts with an electronic or mechanical lock, and fire-rated versions reach REI 120.
Technical data
| Interior doors | Class up to FB4 |
|---|---|
| Exterior doors | Class up to FB6 |
| Blast doors | Overpressure resistant |
| Bunker and special doors | FL7 / FB6+ on request |
| Widths | 90 / 100 / 120 cm |
| Locking | Multi-point, electronic or mechanical lock |
| Fire resistance | REI 120 (fire-rated versions) |
Ballistic shutters
Vertical slats into which the granulate flows freely protect windows, doors and gates. Invisible when open, fully effective when closed.
The shutters consist of vertical slats 150–250 mm wide and approx. 120 mm thick, into which the granulate settles freely. They can be up to 6000 mm high, with electric or manual drive and control by remote, key switch, wall panel or via the BMS and intrusion alarm. Available colours: khaki, RAL 7016 and RAL 7035.
Technical data
| Slat width | 150–250 mm |
|---|---|
| Slat thickness | approx. 120 mm |
| Height | up to 6000 mm |
| Drive | Electric or manual |
| Control | Remote, key switch, wall panel, BMS / intrusion alarm |
| Colours | Khaki, RAL 7016, RAL 7035 |
Applications: Government buildings · Embassies · Banks · Data centres · Industry
Ballistic gates
Industrial doors and entrance gates with granulate-filled panels.
Ballistic gates are available as roller, sliding or swing types with electric or manual drive. They feature emergency opening and can be integrated with access control; REI 120 fire resistance is optional. They are used in halls, loading bays and at site entrances.
Technical data
| Type | Roller, sliding, swing |
|---|---|
| Drive | Electric or manual |
| Fire resistance | REI 120 (option) |
| Safety | Emergency opening, access control integration |
Applications: Halls · Loading bays · Site entrances
Transaction and technical windows
Teller, pass-through and observation windows in a granulate-filled frame.
The windows have a steel frame filled with Soft Armour® and bullet-resistant glass up to class FB6 / BR6. A sliding deal tray and intercom are optional. They are installed in walls, doors and counters – at tellers, pass-throughs, control rooms and guard posts.
Technical data
| Glass | Bullet-resistant up to FB6 / BR6 |
|---|---|
| Frame | Steel with Soft Armour® fill |
| Options | Sliding deal tray, intercom |
| Installation | In walls, doors and counters |
Applications: Tellers · Pass-throughs · Control rooms · Guard posts
Manufacturer: Soft Protect Sp. z o.o. (Soft Armour®). Data from the 2026 manufacturer catalogue; test reports available on request.
